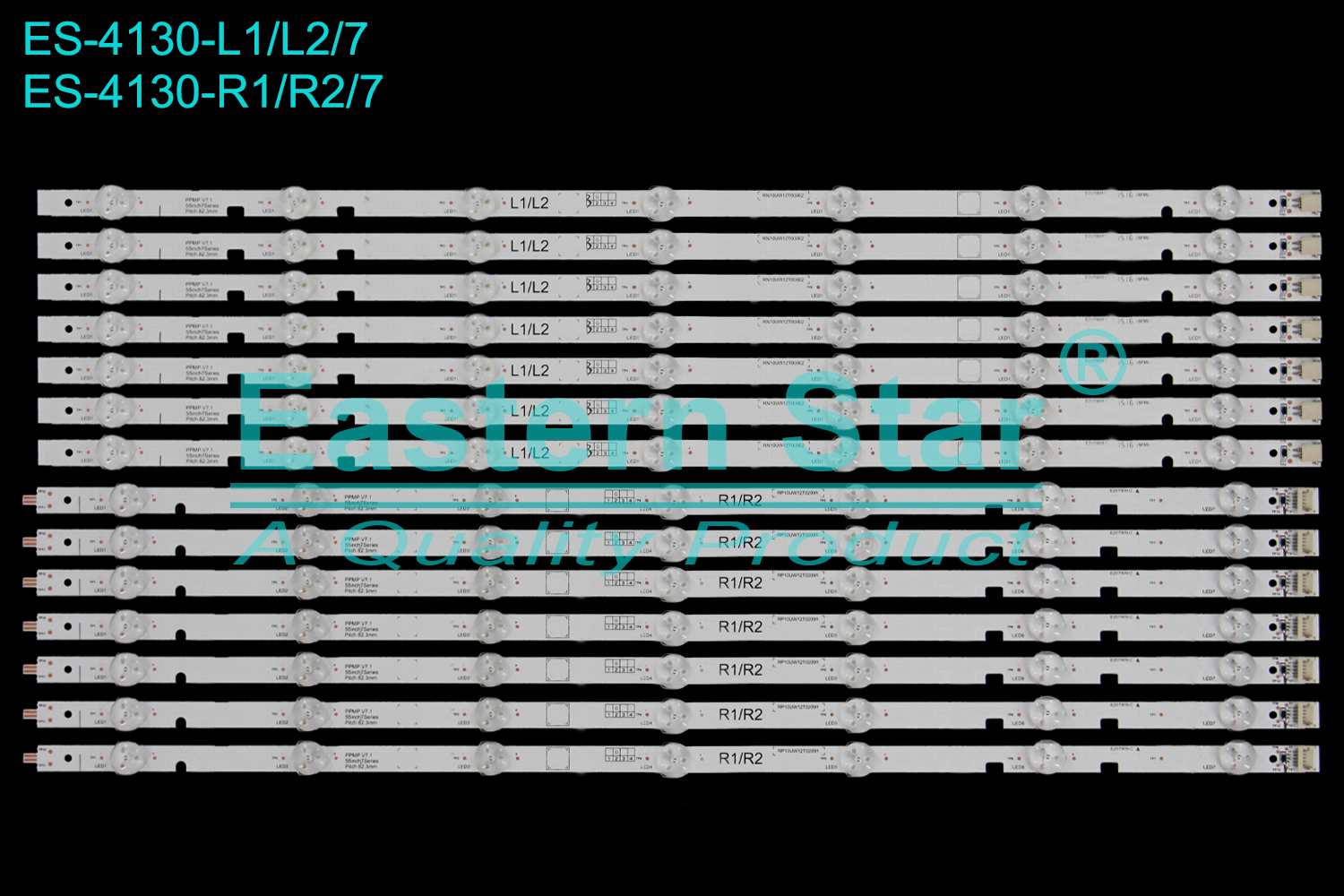

ES-4130 LED TV Backlight use for 55" Sharp/Toshiba HE10UW12T01459 L1L2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T00802 E227809 C R1R2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T02091 E227809 C LED STRIP(14)
Publish Date:2024-02-27 Visits:178
Length: L1 L2:569MM R1 R2:570MM
Voltage:6V
LED Quantity: L1L2: 7LEDs R1R2: 7LEDs
Original Code:

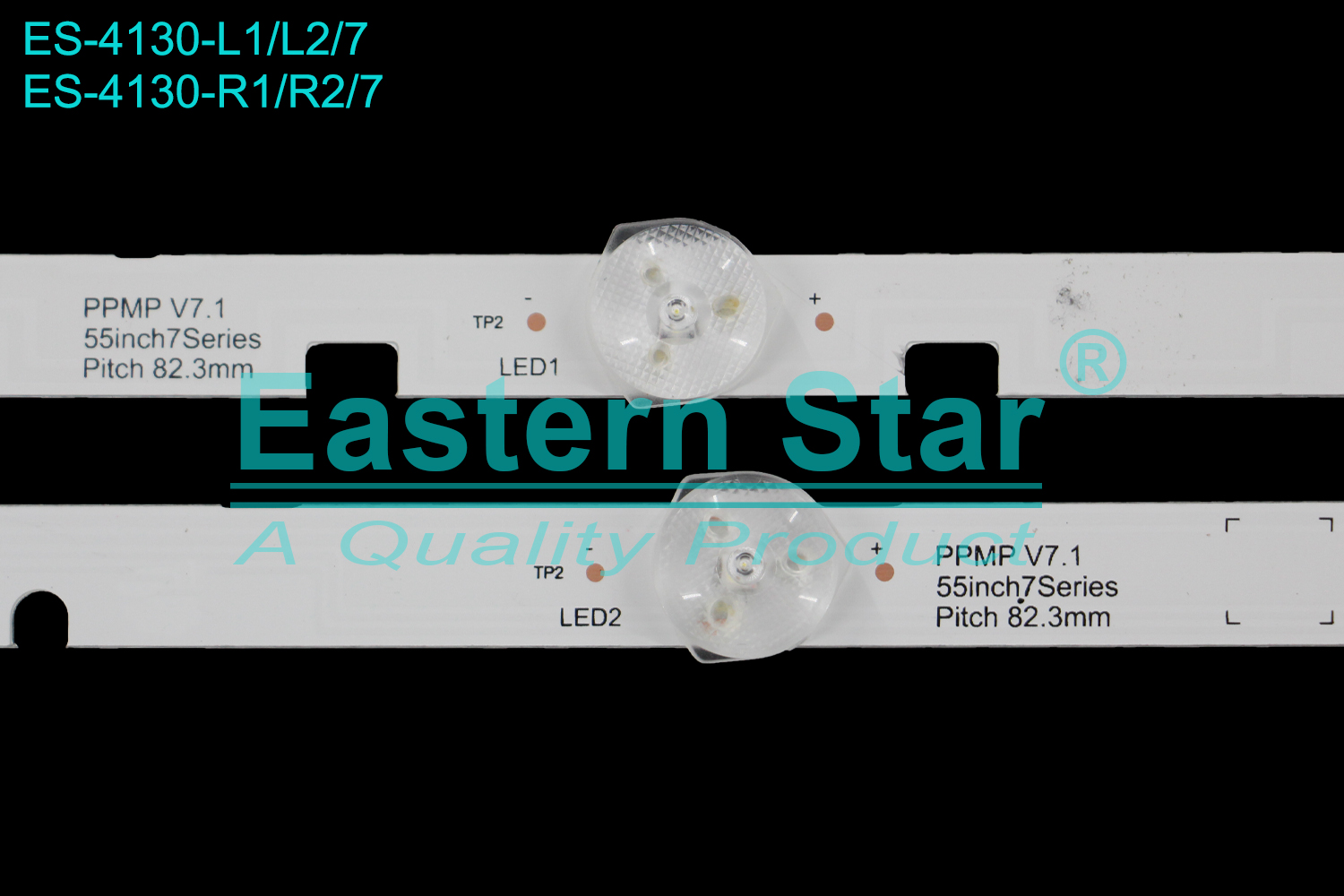

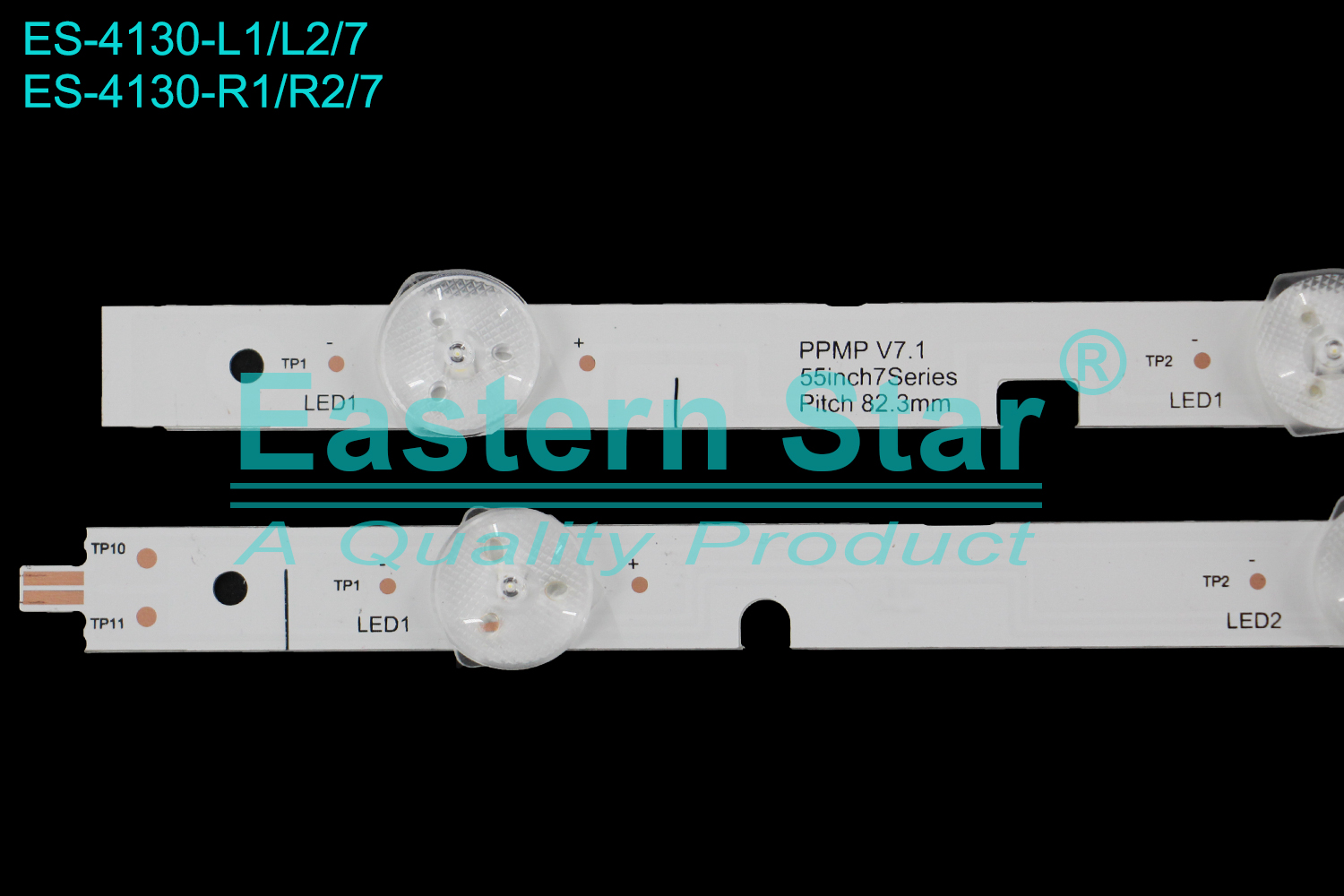

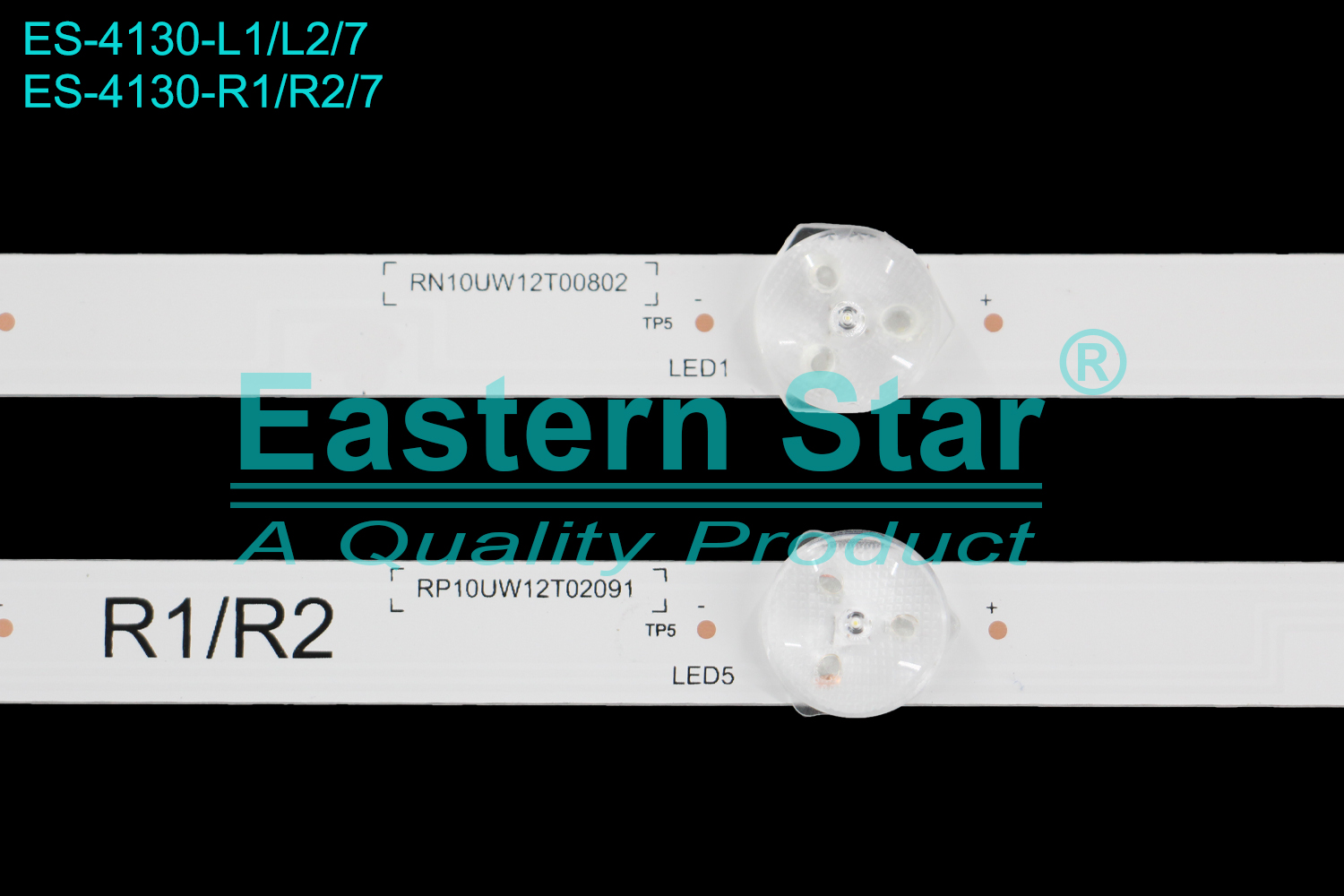

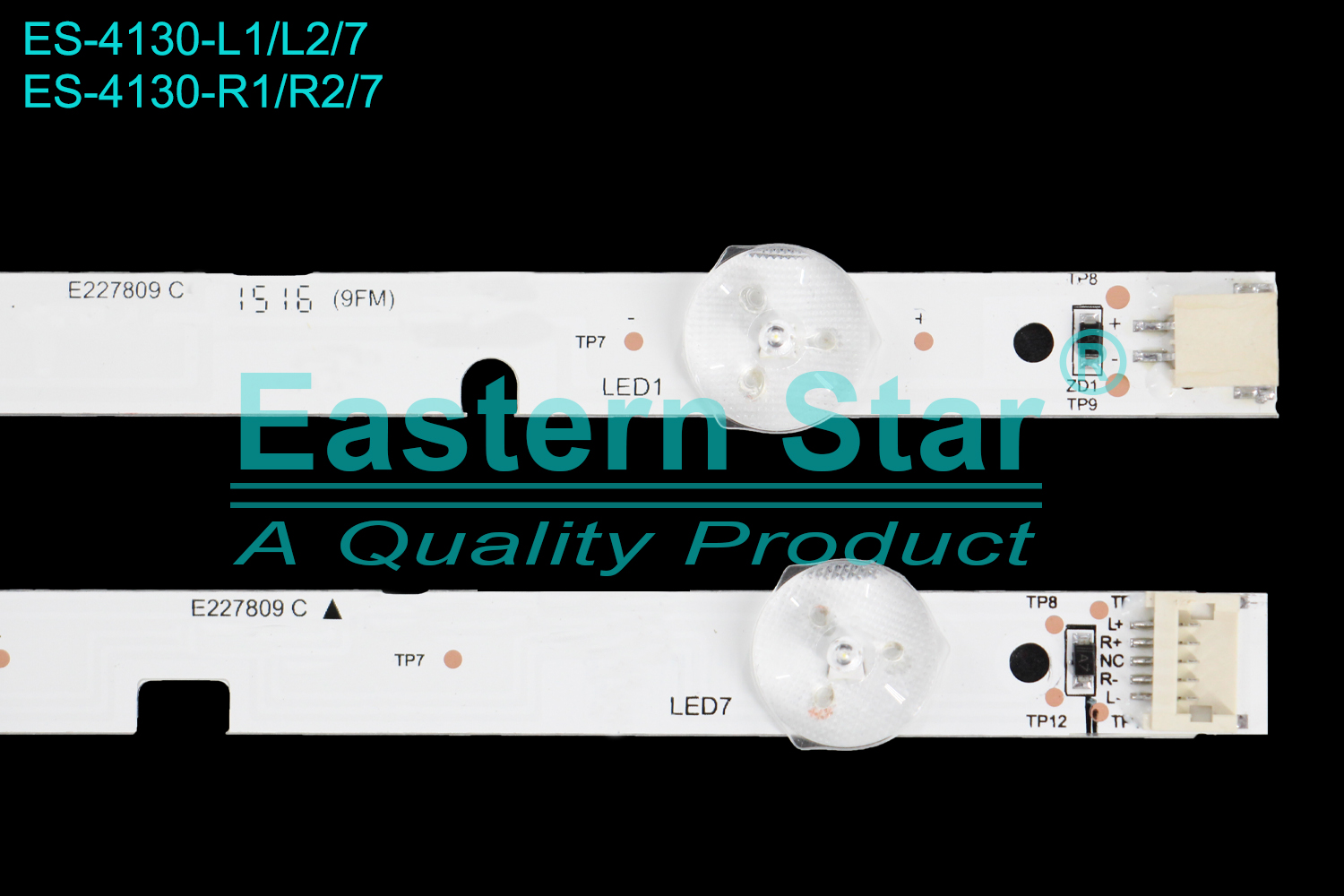

L1L2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T00802 E227809 C
R1R2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T02091 E227809 C
ES Model: ES-4130-L1/L2/7 ES-4130-R1/R2/7
Brands: use for Sharp/Toshiba
Complete Set: 1SET=7L1L2+7R1R2
Length: L1 L2:569MM R1 R2:570MM
Voltage: 6V
Original Code:
L1L2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T00802 E227809 C
R1R2: PPMP V7.1 55inch 7Series Pitch 82.3mm RN10UW12T02091 E227809 C
Panel Sticker Number: /
TV Models: HE10UW12T01459,HE20UW12T007,55J10X
