ES-3814 LED TV Backlight use for 65" Vestel 65Q9900/ Regal 65R854UQ A: RF-CF650001AE30-0801 B: RF-CF650001BE30-0501 C: RF-CF650001CE30-0801 D: RF-CF650001DE30-0501 LED STRIP(10)
Publish Date:2023-08-18 Visits:1222
Length: A=C:782MM B=D:487MM
Voltage:3V
LED Quantity: A: 8LEDs B: 5LEDs C: 8LEDs D: 5LEDs
Original Code:

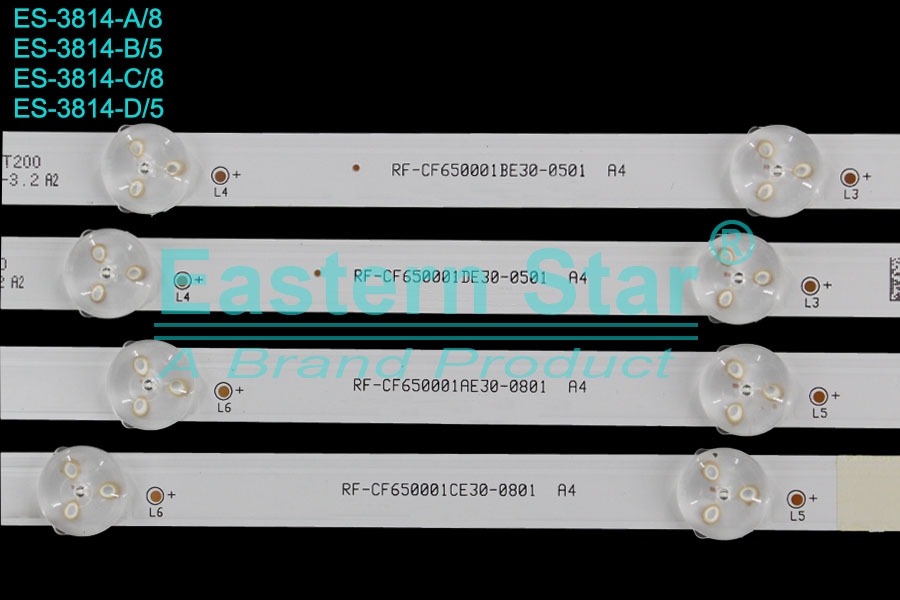

A: RF-CF650001AE30-0801 B: RF-CF650001BE30-0501 C: RF-CF650001CE30-0801 D: RF-CF650001DE30-0501

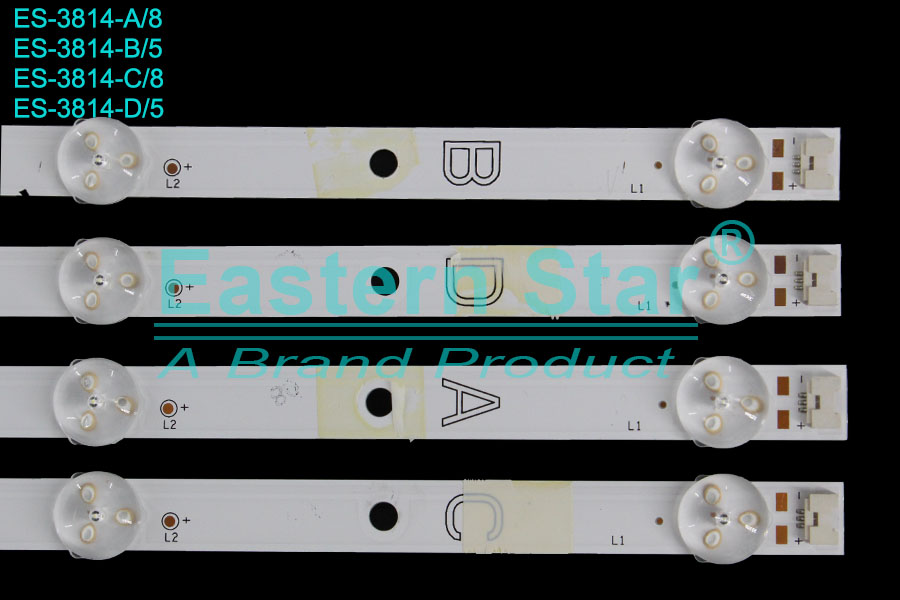

ES Model: ES-3814-A/8 ES-3814-B/5 ES-3814-C/8 ES-3814-D/5 (Similar to ES-3605)
Brands: use for Vestel/Regal

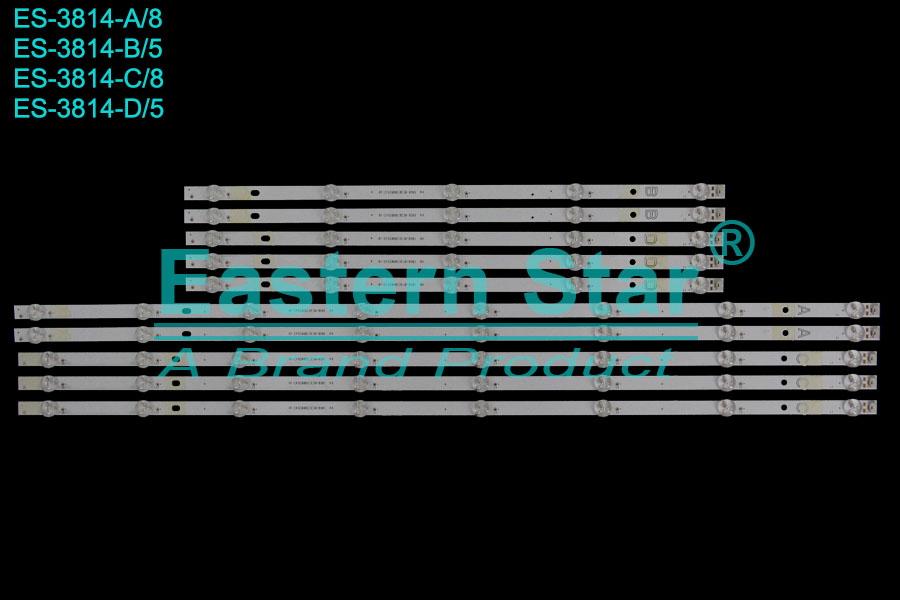

Complete Set: 1SET=2A+2B+3C+3D
Length: A=C:782MM B=D:487MM
Voltage: 3V
Original Code:
A: RF-CF650001AE30-0801 B: RF-CF650001BE30-0501 C: RF-CF650001CE30-0801 D: RF-CF650001DE30-0501
Panel Sticker Number: /
TV Models:
Vestel 65Q9900
Regal 65R854UQ
Panasonic TX-65HX580EZ TX-65HX580B
Toshiba 65U2963DB 65UA3D63DG 65UL2063DB
