ES-ELED-578 ELED/EDGE TV backlight use for 70'' Sharp LCD-70SU761A/LCD-70TX85A/LCD-7OSU766A/LCD-70TX8008A L:6202B000CW201 6202B000CV101 R:6202B000CU201 6202B000CX201 LED STRIPS(4)
Publish Date:2023-01-14 Visits:1244
Length: L=R:385MM
Voltage:6V
LED Quantity: L: 44LEDs R: 44LEDs
Original Code:

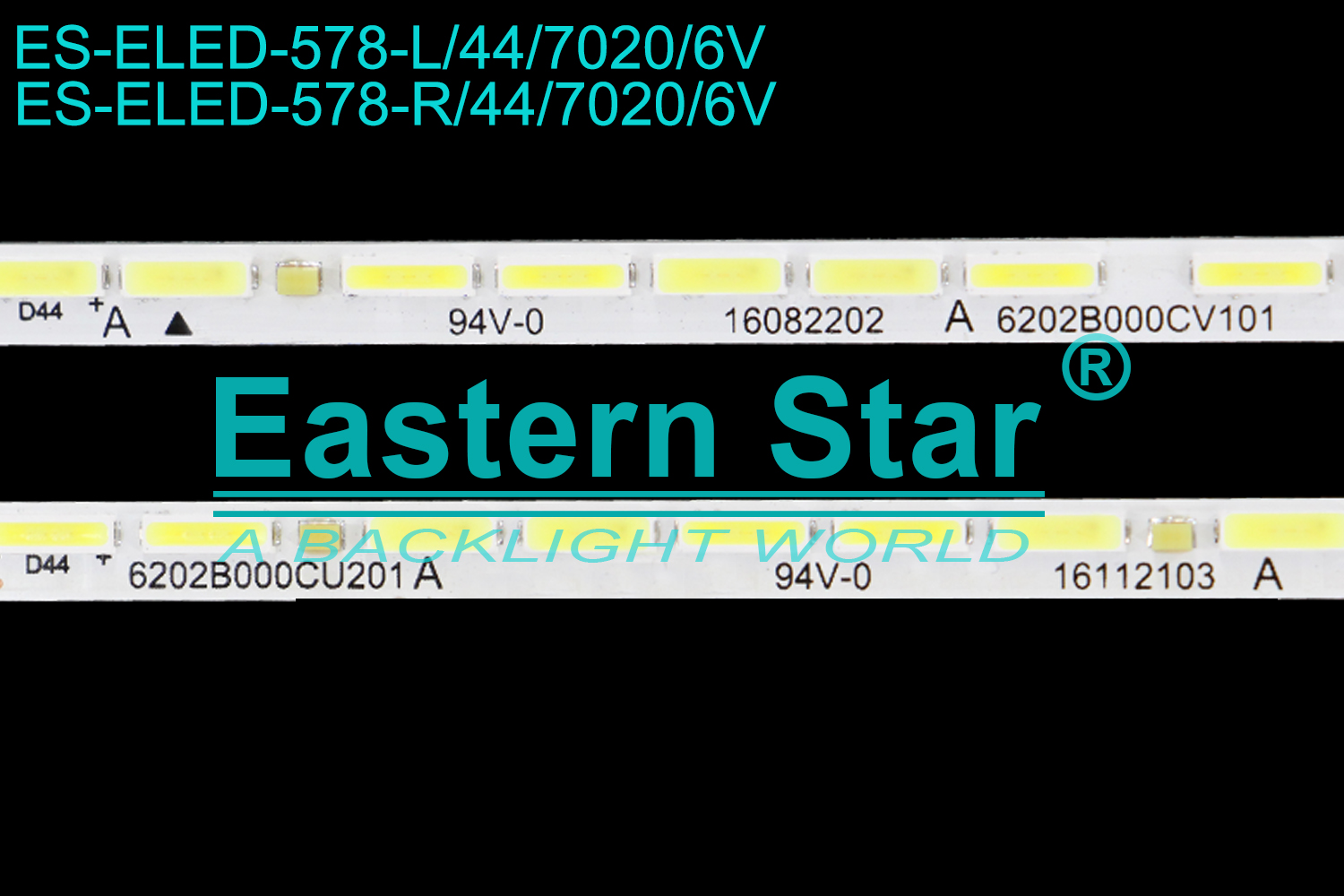

L:6202B000CW201 6202B000CV101 R:6202B000CU201 6202B000CX201

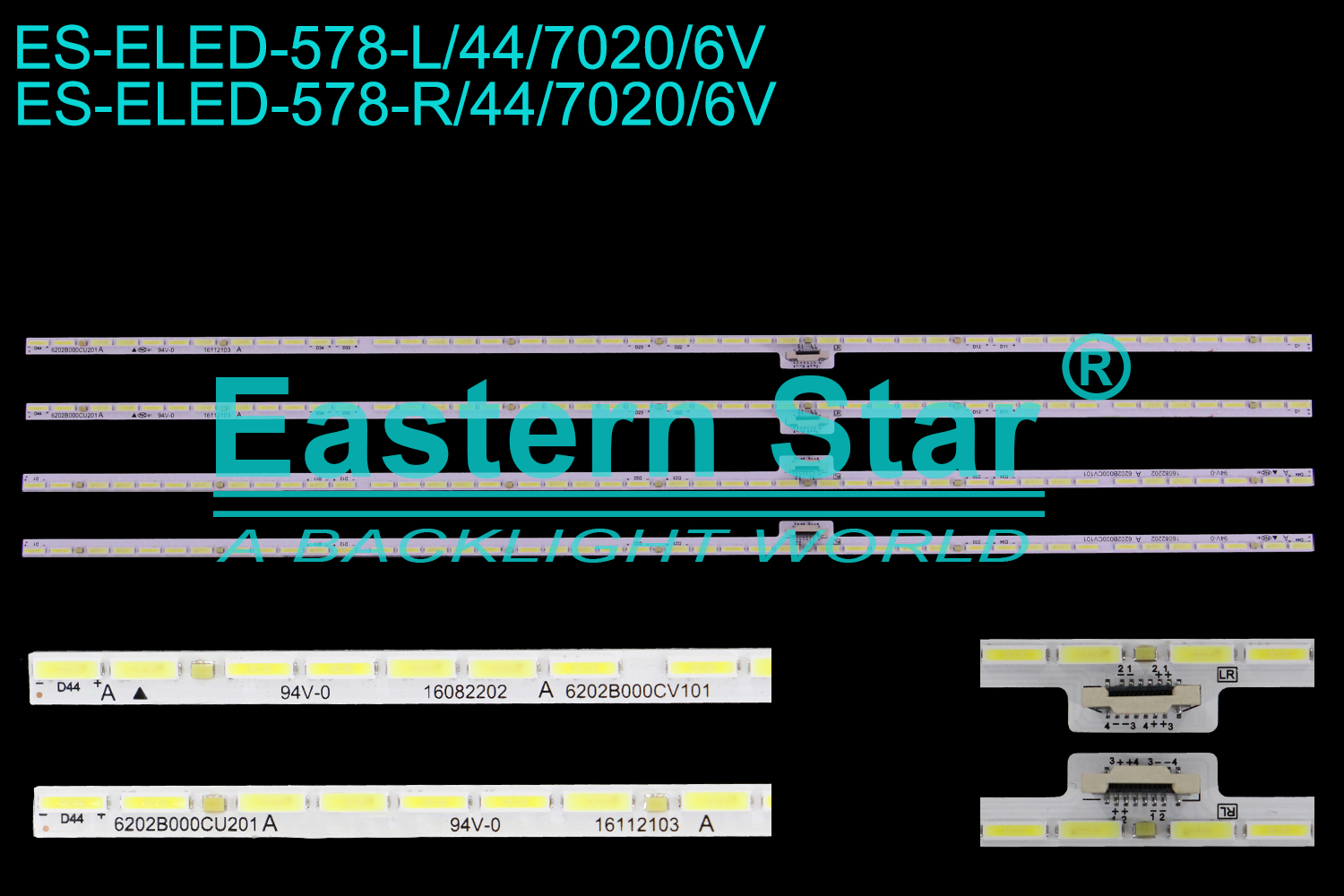

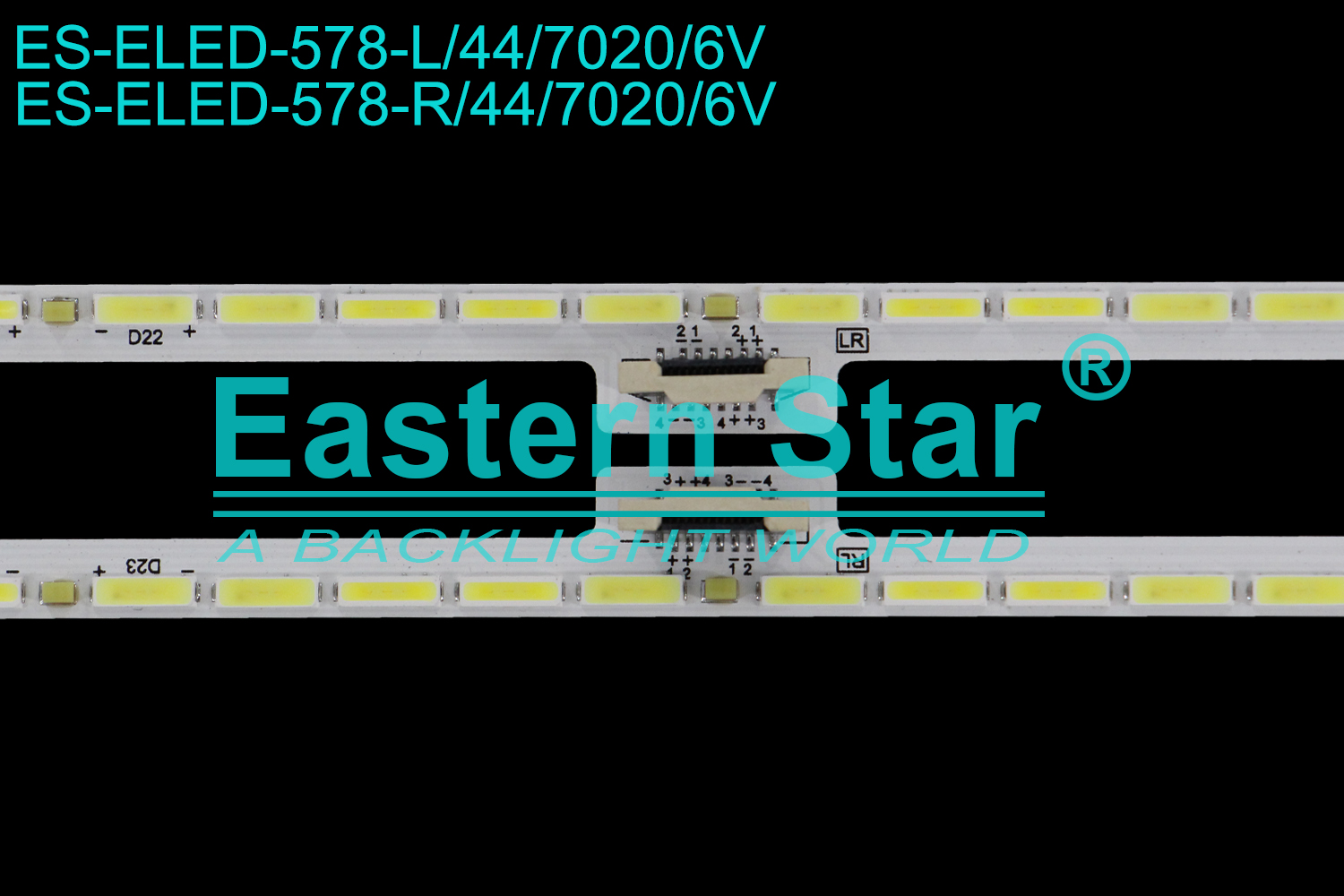

ES Model: ES-ELED-578-L/44/7020/6V ES-ELED-578-R/44/7020/6V
Brands: use for Sharp
Complete Set: 1SET=2L+2R
Length: L=R:385MM
Voltage: 6V
Original Code:L:6202B000CW201 6202B000CV101 R:6202B000CU201 6202B000CX201
Panel Sticker Number: /
TV Models:
LCD-70SU761A/LCD-70TX85A/LCD-7OSU766A/LCD-70TX8008A/70TX8008A 70TX85A /70TX8009A
