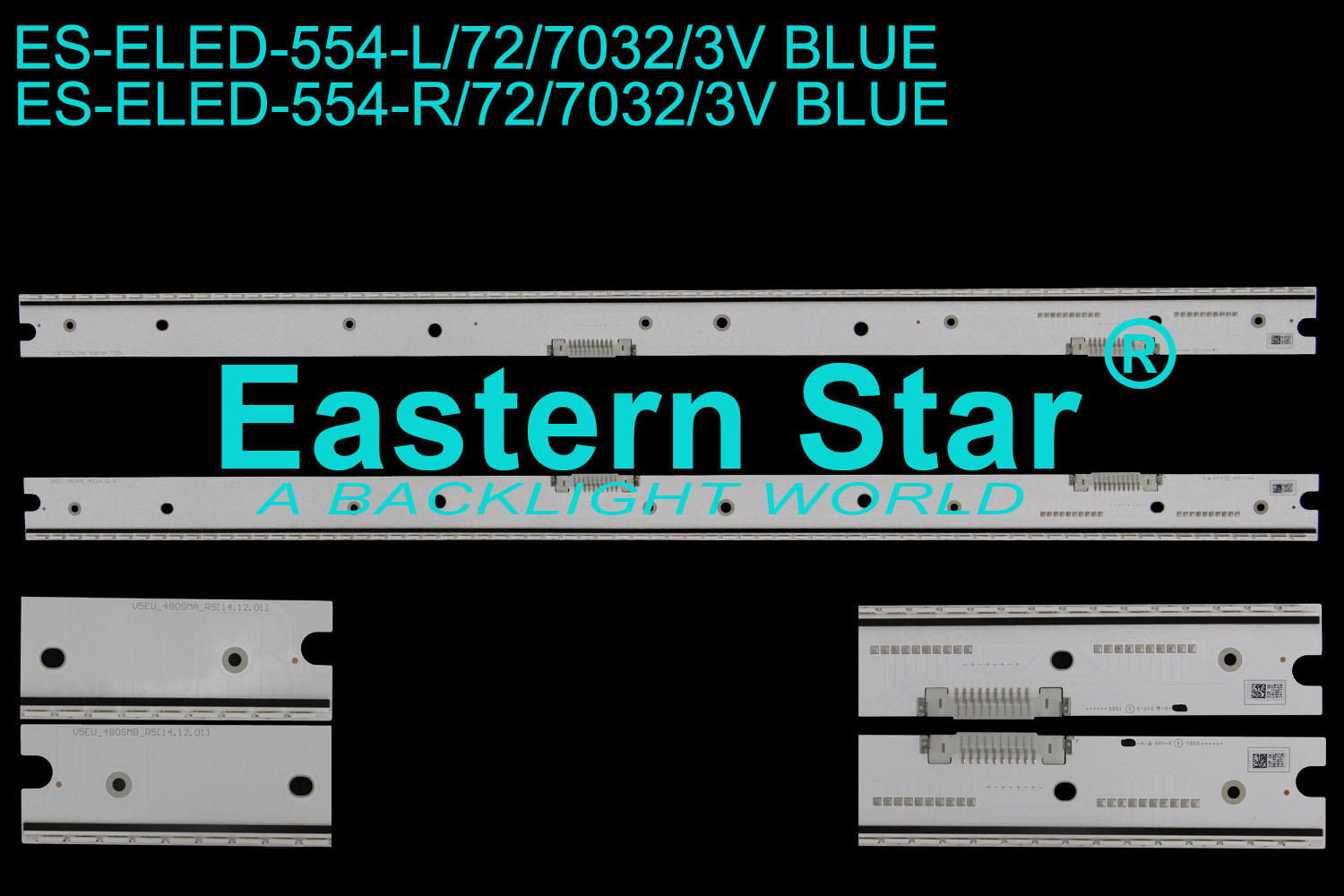

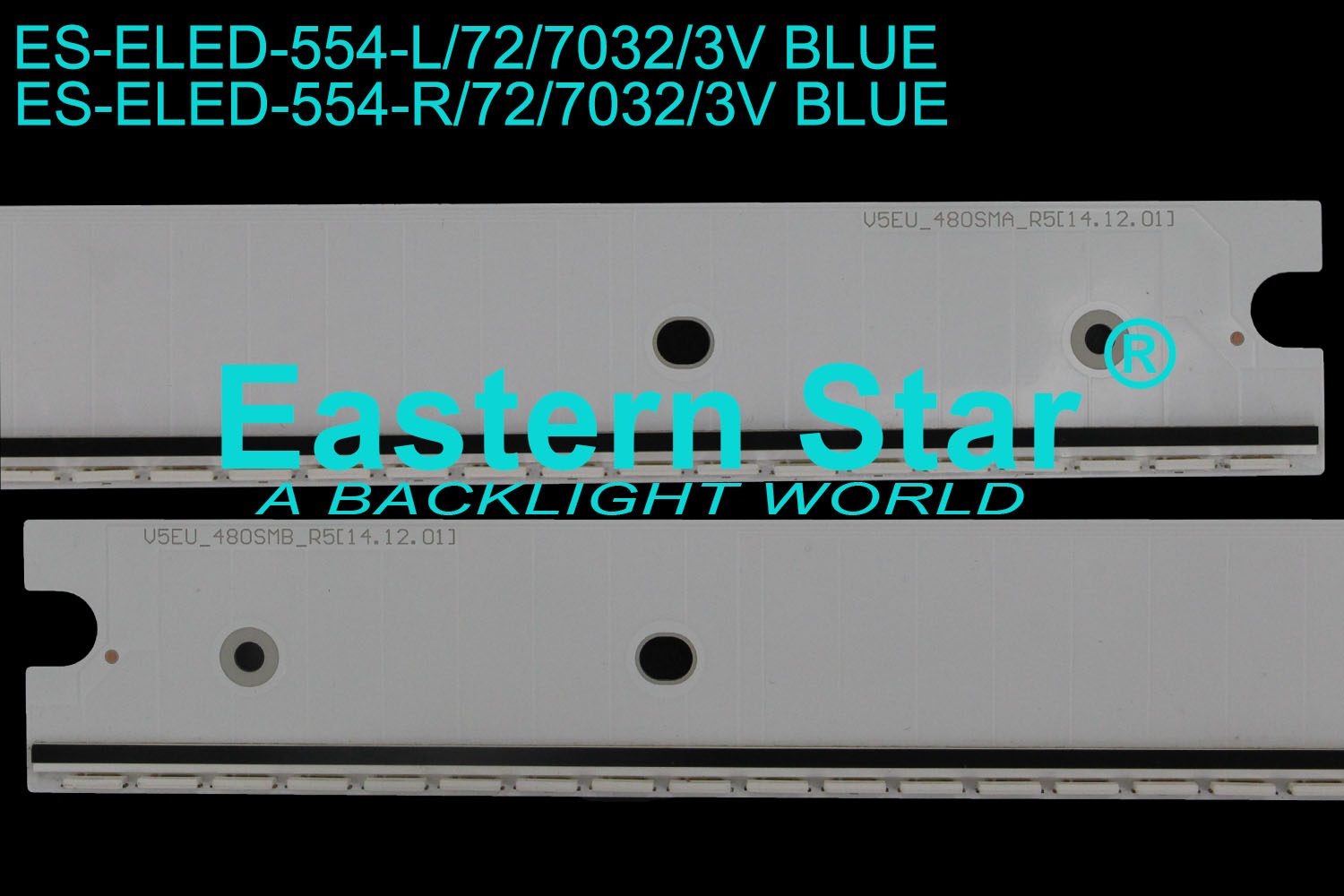

ES-ELED-554 ELED/EDGE TV backlight use for 48'' Samsung UN48JS8500FXZA V5EU_480SMA_R5[14.12.01] BN96-34772A S_5N9_48_SFL_L72_V1.1_141126 V5EU_480SMB_R5[14.12.01] BN96-34773A S_5N9_48_SFL_R72_V1.1_141126 LED STRIPS(2)
Publish Date:2022-10-31 Visits:1533
Length: L=R:597MM
Voltage:3V
LED Quantity: L: 72LEDs R: 72LEDs
Original Code:
V5EU_480SMA_R5[14.12.01] BN96-34772A S_5N9_48_SFL_L72_V1.1_141126
V5EU_480SMB_R5[14.12.01] BN96-34773A S_5N9_48_SFL_R72_V1.1_141126
ES Model: ES-ELED-554-L/72/7032/3V BLUE ES-ELED-554-R/72/7032/3V BLUE
Brands: use for Samsung
Complete Set: 1SET=1L+1R
Length: L=R:597MM
Voltage: 3V
Original Code:
V5EU_480SMA_R5[14.12.01] BN96-34772A S_5N9_48_SFL_L72_V1.1_141126
V5EU_480SMB_R5[14.12.01] BN96-34773A S_5N9_48_SFL_R72_V1.1_141126
Panel Sticker Number: LSF480FJ06
TV Models: UN48JS8500FXZA /UN48JS9000FXZA,UA48JS8000K
