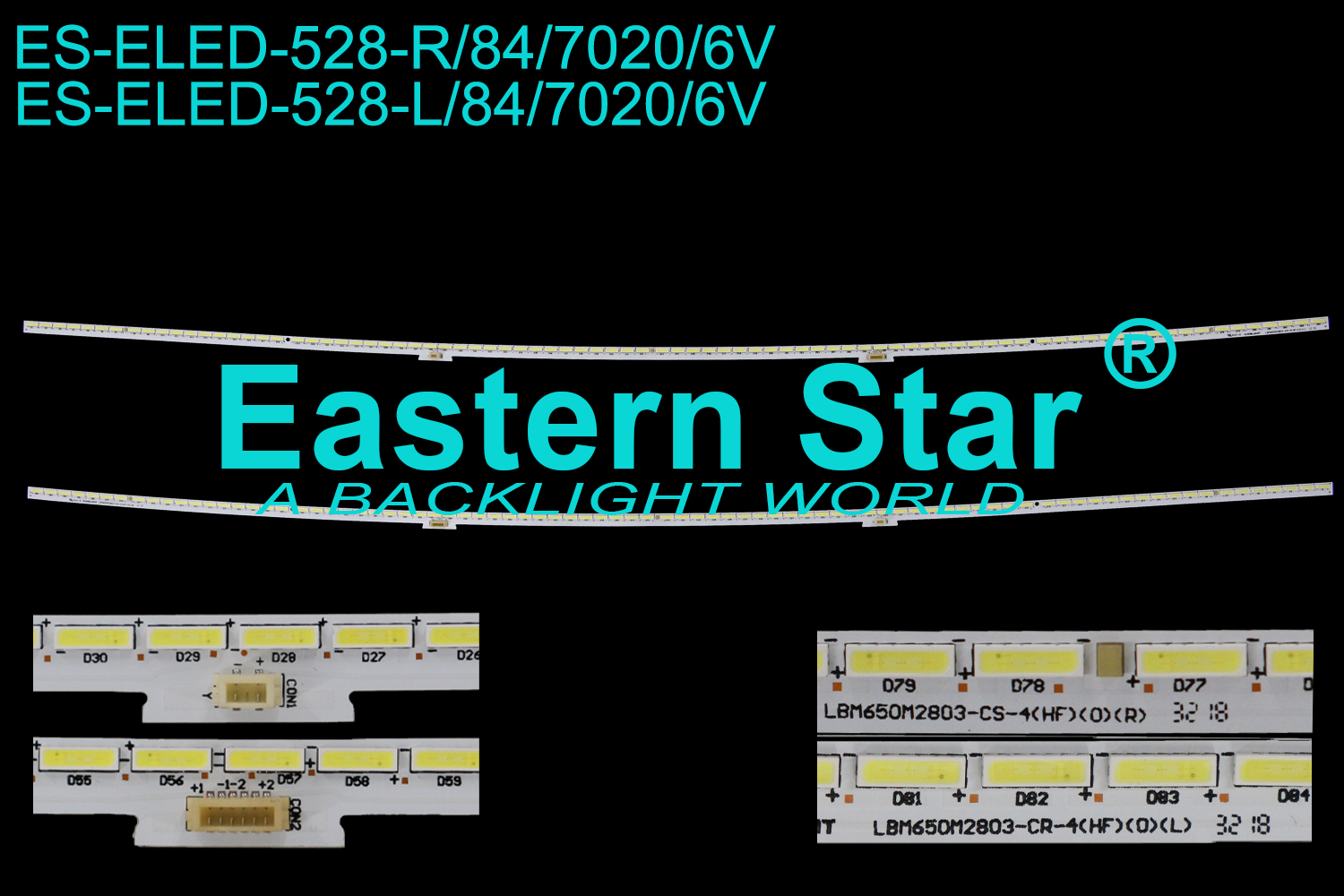

ES-ELED-528 ELED/EDGE TV backlight use for 65'' Hisense LED65EC780UC L:1169635 EVERLIGHT LBM650M2803-CR-4(HF)(0)(L) 3218 R:1169634 EVERLIGHT LBM650M2803-CS-4(HF)(0)(R) 3218 LED STRIPS(2)
Publish Date:2022-09-15 Visits:837
Length: L=R:710MM
Voltage:6V
LED Quantity: L: 84LEDs R: 84LEDs
Original Code:
L:1169635 LBM650M2803-CR-4(HF)(0)(L) 3218
R:1169634 LBM650M2803-CS-4(HF)(0)(R) 3218
ES Model: ES-ELED-528-L/84/7020/6V ES-ELED-528-R/84/7020/6V
Brands: use for Hisense
Complete Set: 1SET=1L+1R
Length: L=R:710MM
Voltage: 6V
Original Code:
L:1169635 LBM650M2803-CR-4(HF)(0)(L) 3218
R:1169634 LBM650M2803-CS-4(HF)(0)(R) 3218
Panel Sticker Number: HE650IUC-B52
TV Models: LED65EC780UC,LED65EC880UC,LED65E7CY,LED65M5600UC
